Shafts
Elevator Shaft
Grain elevator shaft designed to drive chain and paddle elevators without deflection when fully loaded.
Ready-to-fit assembly shaft supplied with pressed sleeves and collars for direct installation on the line.
| Material | EN8 shaft + MS sleeve |
|---|---|
| Diameter range | 30 mm – 80 mm |
| Length range | 700 mm – 2000 mm |
| Assembly | Press fit / welded collars |
| Inspection | 100% dimensional check |
| Packing | Bundled with edge protection |
Custom sizes, materials and finishes are available. Non-standard dimensions are produced against drawing or physical sample.
Grain elevator shaft designed to drive chain and paddle elevators without deflection when fully loaded.
Model 3175 shaft produced to OEM drawings with consistent metallurgy batch after batch.

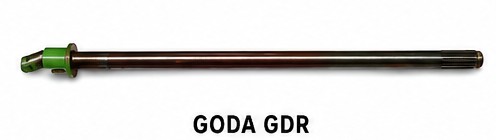

Goda shaft in the GDR pattern, turned, hardened and finished for long service in dusty field conditions.

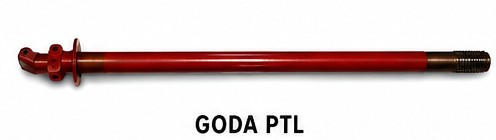

Goda shaft in the PTL pattern, interchangeable with original equipment fitment dimensions.
